Product Details

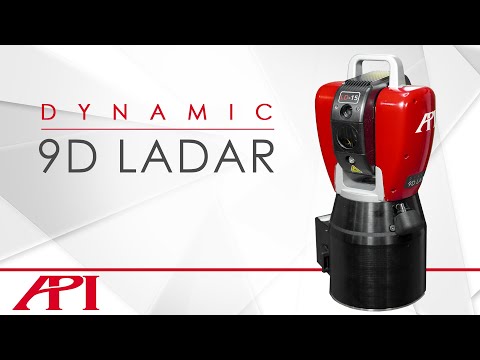

Dynamic 9D Ladar

The API Dynamic 9D LADAR (Laser Detection And Ranging) is a revolutionary, non-contact metrology system for automated industrial measurements.

Enquire Now

Dynamic 9D Ladar

The Fastest, Most Accurate Interferometry-Based Non-Contact Measurement System in The World

Designed for Durability

API’s compact and rigid UNIBODY tracker design allows for shaft mounted motors, encoders and laser. The UNIBODY shaft mounted laser innovation minimizes Abbe offset errors, while also housing laser source, optics, camera and major head electronics in the center of the tracker body.

Quick & Efficient Warm-up Time

The UNIBODY, and the centering of all heat sources, allows rapid distribution of heat throughout the body during warm-up or drastic ambient temperature variations’ ensuring the tracker body maintains constant heat equilibrium throughout its operation resulting in shorter warm-up time and superior measurement stability.

Breakthrough Technology

9D LADAR is a breakthrough technology, set to revolutionize automated production measurement. The patent-pending 9D LADAR is the fastest, most accurate interferometry-based non-contact measurement system incorporating Optical Frequency Chirping Interferometry (OFCI) technology.?

Laser Detection and Ranging

9D LADAR captures both dimensional and surface geometry data targeting all manufacturing industries including but not limited to; automotive, aerospace, ship building, energy, transportation, machine tool, robotics and construction.

9D Ladar Overview

Dynamic 9D LADAR is a breakthrough technology, representing the fastest, most accurate non-contact measurement system in the world. 9D LADAR’s rapid, accurate data collection in real-time is set to revolutionize automated in-line production measurements and obsolete exiting conventional Laser Radar systems that require large sample averaging to obtain reasonable accuracy, effectively slowing data acquisition rates.

Applications

  • Optical CMM– small to large volume, simple to set up, fast and accurate
  • CNC Machine In-situ inspection
  • In-line inspection and dimensional control for aircraft, automobile, wind energy or similar industries?
  • Flush and Gap
  • Part Measurement
  • Jigs, Fixture & Tooling Inspection
  • Reverse Engineering
  • Robotics
  • X,Y,Z – I,J,K and R,G,B Dimentions
